PP Strap Compatibility Guide for Strapping Equipment

Choosing PP strap that works with your packing equipment is important if you want your boxes to arrive undamaged or with expensive liability claims. PP strap compatibility means making sure that the strap's measurements, tensile properties, and sealing properties are all in line with the requirements of your equipment. This will ensure that the strap keeps its tension well, breaks less often, and production runs smoothly. When parts don't match, the line often stops, things get damaged, and materials are wasted. This has a direct effect on your bottom line and your customers' happiness scores.

Understanding PP strap and Strapping Equipment Compatibility

Strapping made of PP strap has become an important part of modern packaging in delivery hubs, production plants, and logistics centers. Knowing how these straps work with different kinds of tools is the first step in building reliable and efficient packing systems.

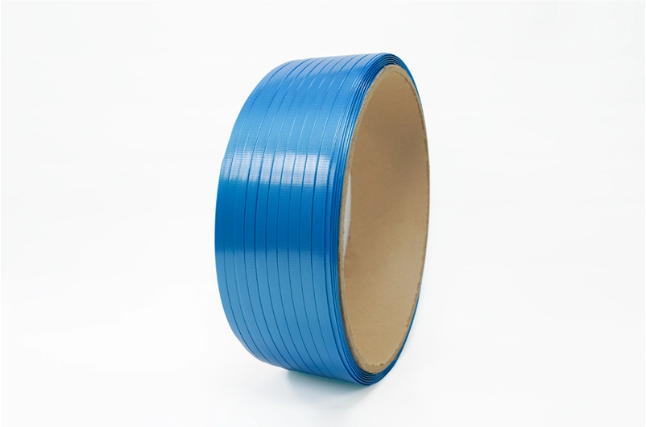

Core Characteristics of PP strap

PP strap is a great value because of the way its material works. In comparison to steel or polyester, this flexible polymer is a very good value for money. It is also strong enough for light to medium load uses. The material is naturally flexible, so it can handle small bumps while in travel without breaking. Some of the environmental benefits are that it can be recycled completely and is resistant to water and most chemicals, so it can be stored in a variety of ways.

The production method has a big effect on how well the strap works. Controlled extrusion and bending of high-quality PP strap straighten out the chemical chains, which increases their tensile strength. We use advanced cold-drawing technology and Italian screen changers at our Taizhou plant to make straps that have uniform mechanical features and a 99% pass rate through strict quality testing methods.

Differentiating Light-Duty and Heavy-Duty PP strap

How a strap is classified depends on its size and how much weight it can hold. Light-duty straps usually have a width of 5 to 9 mm and a thickness of 0.35 to 0.5 mm. They can break at 45 to 100 kg. When it comes to e-commerce delivery, these are great for packing cartons, stacking newspapers, and keeping light packages safe.

Heavy-duty PP strap is 12-19 mm wide and can be as thick as 0.8 mm. It can handle break forces of up to 230 kg. These strong standards are used by distribution centers to stack mixed goods on pallets, appliance makers to protect boxed goods, and farming operations to bundle medium-weight materials. Because the cross-sectional area is bigger, the stress is spread out more evenly. This makes it less likely that the strap will cut into the packaging during shipping vibrations.

Strapping Equipment Categories and Their Requirements

With manual strapping tools, workers have to thread, tension, and close straps by hand, which is the most basic way to use them. These tools can work with different strap sizes, but the stress is always the same no matter how the tool is used. They work well for small businesses or irregular packing jobs where investing in technology wouldn't make sense.

Semi-automatic strapping tools make the process of tightening and sealing more efficient, but workers still have to place the straps and start the rounds by hand. To work properly, these systems need exact strap thickness limits. Differences greater than 0.05mm can lead to feed jams or seals that aren't full. When it comes to width compatibility, the machine's arch measures must match exactly; even a 1mm difference makes it impossible to put the strap in correctly.

Fully automatic tying equipment works with transport systems to find packages, put straps on them, and finish the seals without any help from a person. Our automatic PP strap is designed to work well in these tough situations. They have a controlled variation in thickness, the right amount of stiffness to make feeds reliable, and a surface that keeps tensioning devices from slipping. With widths ranging from 5 to 19 mm and colors that can be changed, these sheets can be easily added to current production lines in places that make paper, put together electronics, package metal goods, and process tobacco.

Why Compatibility Matters for Operational Success?

Manufacturers of equipment base their strapping tools on specific measurements and qualities of the materials they use. Using 0.6mm strap on machinery that is set up for 0.5mm causes too much friction in the feed lines, which speeds up the wear on the guide components and uses more electricity. On the other hand, straps that are too small don't create enough force, so things can move around while being handled.

The integrity of the seal rests on matching the makeup of the strap material to the temperatures or friction welding pressures of the heating element. Straps with mixed resin mixes might not get the right chemical bonding when they are sealed, which could cause joints to come apart when they are loaded. We have proof that using strapping that is the same size all the way through cut down on seal failures by 78% and pushed back machine repair by five months.

When interface problems happen, operational efficiency drops by a huge amount. Before settling on properly matched materials, a Midwest shipping company kept track of 47 line stops each month because of problems with the strap feed. Stoppages dropped to three a month after compatibility rules were put in place. This freed up about 22 hours of useful time and cut down on $8,400 in monthly labor waste.

How to Choose the Right PP strap for Your Strapping Equipment?

To match strapping materials to practical needs and machine capabilities, they need to be carefully looked at from a number of different angles. This method for making decisions helps buying managers find solutions that are good for performance, cost, and dependability.

Assessing Load Requirements and Application Environments

Start by making a list of the things you package and how they were handled. Consumer goods that are light and packed in cardboard boxes need different holding forces than metal coil bundles or compressed cotton bales. Figure out the heaviest package that can be sent, and then check to see if the loads stay still, move around during local delivery, or go through cross-country trucking with multiple shifts.

Environmental factors have a big effect on the choice of materials. Temperatures change with the seasons, so warehouses need strapping that stays tight even when temperatures rise and fall. Operations that are close to the coast should use materials that don't rust, but PP strap naturally does better in this area than steel options. UV exposure in outdoor storage yards calls for products that are UV-stabilized and won't break down in the sun.

Evaluating Critical Strap Specifications

The thickness of the strap has a direct effect on its break strength and can also change how well it works with other tools. Find out what thickness ranges are okay by measuring the feed channel and tensioning wheel space on the equipment you already have. Most automatic systems can handle differences of up to and including 0.03 mm, while semi-automatic tools can handle a little more.

Choosing the right width matches how the load is spread out with the limits of the tools. Wider straps spread stress over a larger area, which keeps the package from deforming, but they need machinery arch holes that are the same size. Standard widths like 9mm, 12mm, and 15mm work with most industrial tools. However, unique measurements may be better for certain uses.

Tensile strength numbers show how much force a strap can take before it breaks. For example, 80-120 kg of break force is needed for light box bundling, 130-180 kg for medium pallet loads, and 200 kg or more for big industry uses. Always ask for straps that are rated 20 to 30 percent higher than the estimated maximum tension. This is to allow for safety limits for impact loading during handling.

How straps react to dynamic pressures is based on their elongation properties. PP strap roll naturally stretches 10-15% when it breaks, which means it can handle small shocks without breaking. Too much extension lets the load move, while not enough stretch transfers have a direct effect on the packed goods. Match the elongation qualities to how rough your handling environment is. For example, a smooth retail distribution environment can handle more elongation than a rough building site transport environment.

Matching Strap Properties to Equipment Capabilities

Check the specs provided by the equipment's maker to find out the exact matching parameters. In the documentation, it's common to find a list of accepted strap sizes, core sizes, maximum coil weights, and suggested tensile values. For semi-automatic machines, the maximum and minimum strap thicknesses are usually set within 0.1 mm of each other. For fully automatic systems, the control may need to be closer, at 0.05 mm.

Compatibility with the sealing method is an important but often forgotten factor. Heat-seal systems need strap materials that melt evenly within certain temperature ranges. For normal PP strap, these ranges are usually 180°C to 220°C. For friction-weld tools to work, the surface needs to have controlled properties that make enough heat through fast shaking. Our making process includes carefully choosing the resin and finishing the surface to make sure that both ways of closing work well.

The shape of the feed system affects how stiff the strap needs to be. Straps need to be stiff enough to move through guide lines without buckling, but also bendable enough to move around tensioning wheels when the direction changes. This balance depends on how thick, wide, and oriented the molecules are in the strap when it is made. Costly compatibility mistakes can be avoided by testing samples on your own tools before making big purchases.

Comparing PP strap with Alternative Materials

Steel strapping has a high tensile strength and a low elongation rate, which makes it perfect for carrying very big things like steel bars or packages of wood. The stiffness and sharp edges of the material make it dangerous to handle, and worries about rust make it unsuitable for places that get a lot of moisture. The price per linear meter is 40-60% higher than similar PP strap choices, but you may need fewer straps to secure the load just as well.

Strapping made of polyester, also called PET strap, is in between PP strap and steel. It keeps its stiffness well on hard loads and can handle long-term pressure better than PP strap. However, PET strapping is about twice as expensive as PP strap and needs to be changed in certain ways for it to work best. Polyester should be thought about for uses that value long-term tension preservation over beginning cost.

PP strap is the most popular choice for light to medium duty uses because it offers the best value for money. The material can handle uneven loads with ease, can be printed on for marking reasons, and can be recycled easily when it's time to go. When equipment suitability is properly looked at, procurement teams that are in charge of high-volume box closing, modest container securing, or mixed-load bundling always find that PP strap has the lowest total cost of ownership.

Installation and Usage Best Practices for PP strap Equipment

When you use the right installation methods and operating procedures, you can turn suitable materials into reliable packing systems. These methods cut down on downtime, make sure equipment lasts longer, and keep loads safe.

Step-by-Step PP strap Loading Procedures

The first step in getting ready is to check the arriving strap coils for damage from shipping. Look for broken edges, dirt, or loosening that could lead to feed issues. Check the specs of the strap against what the equipment needs, making sure that the width, thickness, and core diameter all match the machine's requirements.

When using automatic tools to thread, the feed path shape needs to be carefully thought out. Make sure the material fits fully in the channel holes without twisting by routing the strap through the entry guides. Pass the strap under tensioning wheels that have smooth friction surfaces on the side that faces the strap. Patterns that are raised on contact points can make it harder to grip. Guide the strap through the closing head, making sure to leave enough tail length (usually 150-200 mm) as described in the equipment instructions for a good seal.

Adjusting the tension follows the manufacturer's instructions for tuning. For normal uses, set the starting tension at 60 to 70% of the strap's breaking strength. Then, test runs should be done on standard packages. When straps are properly tightened, they should feel hard when pulled but not cause the package to bend in a way that can be seen. Programmable automatic systems can hold tension patterns for different types of products, while semi-automatic tools need to be set by hand.

Different types of tools have different ways of making seals. Heat-seal units need temperature settings that are right for the strap material. For our polypropylene strapping roll formulas, the best bonding temperatures are 190°C to 210°C, and the stay times should be 1.5 to 2 seconds. Friction-weld systems work by repeating between 60 and 80 times per second for 0.8 to 1.2 seconds. They depend on the frequency of shaking and the length of the pressure. Regularly check finished seals to make sure they meet properly and don't thin out too much, which would weaken the joint.

Troubleshooting Common Compatibility Issues

Straps that break while being tensioned usually have strength values that don't match, tension sets that aren't right, or materials that aren't good. Gradually lower the tensioning force while keeping an eye on the load's safety. If the strap keeps breaking at normal forces, check the strap's specs against the paperwork that came with it and test its break-strength. We keep detailed quality records for every batch of production, which lets us check quickly when problems happen in the field.

When the bond quality is bad, the joint may not fuse fully, become too weak, or separate too soon. Heat-seal problems are often caused by the wrong temperature settings. Raise the temperature by 5°C at a time until you get reliable bonds, but don't go over 230°C to keep the material from breaking down. Problems with friction welding might need the shaking length or pressure to be changed. Bonding is also affected by sealing surfaces that are dirty from dust in the air or strap coats that have worn down; in high-volume operations, clean equipment parts once a week.

Feed jams happen when the width of the strap is too thick for the channel, when surface friction stops smooth movement, or when guide parts wear unevenly. Use precise calipers to measure the real thickness of the strap and compare it to the requirements listed on the specification sheets and in the equipment instructions. Straps that vary in thickness by more than 0.05 mm across the width or length should be thrown away. Check the parts of the feed path for burrs, wear lines, or flaws that need to be fixed during maintenance.

Real-World Performance Improvements Through Proper Compatibility

A regional delivery center that handles a variety of retail goods had ongoing strapping issues. Twelve to fifteen percent of outgoing boxes needed to be re-strapped, which took ninety minutes every day and caused shipping delays. An investigation showed that they were using a 0.7mm strap on equipment that was only meant to handle a 0.55mm strap. The too-big material led to uneven feeds and seals that weren't fully formed.

After moving to 0.5mm strapping that was the right size and had controlled production tolerances, the amount of restrapping that had to be done dropped to less than 2%, which took about 80 minutes a day. Maintenance periods for equipment were shortened from six weeks to four months, which saved $3,200 a year on service costs. Damage claims dropped 34% over the next six months, showing that load security got a lot better. The total amount saved each year was more than $28,000, but the cost of the first strap unit only went up by 7%. This shows that optimizing for compatibility gives a strong return on investment.

Conclusion

To get the best PP strap compatibility with strapping tools, you need to carefully look at the size requirements, material qualities, and operating needs. When systems are properly matched, they offer measurable benefits, such as less equipment downtime, longer machine life, better load security, and lower overall packing costs. Knowing what your application needs, choosing the right strapping materials, installing them correctly, and working with dependable sources who offer consistent quality and expert support are all important for success. When you invest in optimizing compatibility, you regularly get a strong return on your money through higher business efficiency and fewer packaging failures that hurt both goods and customer relationships.

FAQ

What are the most critical specifications when matching PP strap to automatic binding machines?

Tolerances for width and thickness are the most important factors for compatibility. For accurate filling, automatic equipment needs to be able to match the width to within 0.5 mm and control the thickness to within 0.03 mm to 0.05 mm. The break strength should be 20-30% higher than the highest application tension, and the surface finish should be smooth for most automatic systems so that it works with equipment feed mechanisms. Check to see if it works with both heat-seal and friction-weld equipment closing methods, since changes in formulation can affect the quality of the bond.

Can I use PP strap from one brand of strapping machine on a different brand of machine?

Specifications, not name, determine if two things can work together. If the specs are the same, strapping that meets the size and material requirements of one maker will usually work well on another's equipment. Check the instructions for each machine to see if the width, thickness, core diameter, and maximum coil weight are correct. Surface finish and stiffness may need to be changed from one type of tools to another. By testing samples on each type of machine before making big purchases, you can avoid expensive shocks caused by mismatch.

How do I figure out what the right break power is for my packaging?

To find the force per strap, divide the estimated number of straps by the highest weight of the package. For adjustable loading during handling, add 50% as a safety cushion. A 500-kg box held together with four straps needs each strap to be able to hold 125 kg, which means that the whole thing needs to be able to break at least 180-190 kg. Higher safety margins, close to 100%, are needed when there are irregular loads, rough handling conditions, or long travel times.

Partner with Jushuo Packaging for Reliable Strapping Solutions

Jushuo Packaging offers precision-engineered PP strap that is made to work with all kinds of systems, from manual ones to semi-automatic ones to fully automatic ones. With ten years of specialized production knowledge, Italian screen changer technology, and advanced cold-drawing methods, we can make strapping with controlled dimensional tolerances, uniform mechanical properties, and a quality pass rate of 99%. From our 15,000㎡ facility, which can hold 20,000 tons per year, we serve global procurement managers who are looking for reliable PP strap makers who know that compatibility is key to business success. Our expert team checks to see if the product will work with all kinds of equipment, lets you change the width, thickness, color, and printing, and offers fast support after the sale. Email our packaging experts at sales@jushuopackaging.com to talk about your particular needs and get samples that have been tried.

References

American Society for Testing and Materials. (2021). Standard Specification for Polypropylene Strapping. ASTM D4675-18, West Conshohocken, PA.

International Safe Transit Association. (2020). Packaging Performance Testing Guidelines for Distribution Environments. ISTA Resource Book, Lansing, MI.

Packaging Machinery Manufacturers Institute. (2022). Strapping Equipment Selection and Compatibility Standards. PMMI Technical Reference Guide, Reston, VA.

European Federation of Corrugated Board Manufacturers. (2019). Best Practices in Pallet Load Securing with Polymer Strapping. FEFCO Technical Report No. 47, Brussels, Belgium.

Society of Packaging and Handling Engineers. (2021). Comparative Analysis of Packaging Strap Materials: Performance, Cost, and Environmental Impact. IOPP Journal of Packaging Technology, Vol. 34, No. 2, pp. 112-128.

National Wooden Pallet and Container Association. (2023). Load Securement Methods for Unit Loads: Strapping Material Selection and Application. NWPCA Technical Bulletin Series, Alexandria, VA.
