Polypropylene PP Strap Buying Guide: Specs That Actually Matter (Width, Thickness, Core)

The Specification Puzzle

Industrial buyers face a common challenge when sourcing PP strapping: which specifications genuinely matter for performance, and which are simply "marketing numbers"? A strap that looks adequate on paper may perform poorly in your strapping head or fail during transit. Understanding the practical implications of key dimensions—width, thickness, and core size—can distinguish between packaging reliability and costly operational issues.

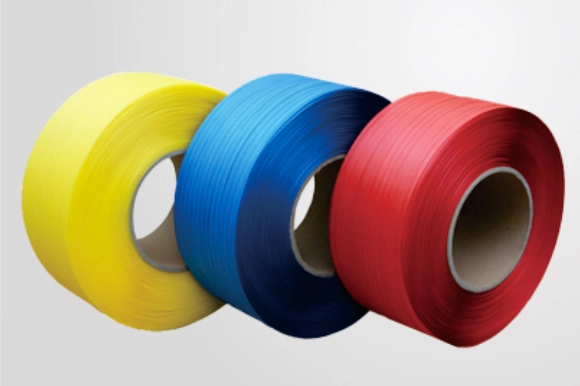

PP strap (polypropylene strap) is the most commonly used strapping material for light to medium-duty applications, including palletizing, unitizing, bundling, and carton closure . Its popularity stems from advantageous pricing and adequate performance characteristics for many industrial scenarios . However, selecting the right specification requires understanding how each dimension affects real-world performance. At Jushuo Packaging, our production data shows that specification mismatches are among the most common causes of strapping line inefficiencies reported by European customers.

1. Width: The Most Critical Specification

1.1 Why Width Matters First

Strap width is arguably the most important specification for matching PP strap to your application. Common widths range from 5mm to 19mm, with 9mm, 12mm, and 16mm being most prevalent in European industrial packaging.

The primary function of width is load distribution. Wider straps spread compression forces across a larger surface area, reducing the risk of edge damage to cartons and protecting load integrity. For heavy-duty palletizing, 16mm strap is the industry standard—it provides adequate surface contact while delivering break strengths exceeding 200kg. For light carton bundling, narrower options down to 5mm may suffice.

1.2 Application-Based Width Selection

Industry sources confirm that PP strap is available in multiple widths including 12mm, 16mm, and more, with performance varying accordingly . Jushuo Packaging's engineering team regularly advises clients to test at least two width options during trial runs, as the optimal choice often depends on specific carton edge strength and pallet configuration—factors that cannot be fully assessed from specification sheets alone.

2. Thickness: The Strength Multiplier

2.1 Understanding Thickness Specifications

Thickness typically ranges from 0.4mm to 1.0mm for standard PP strapping. While thickness alone does not determine break strength (manufacturing process and molecular orientation play significant roles), it is a direct contributor.

Industry specifications show that a PP strap with 0.65mm thickness delivers approximately 110kg break load, while increasing to 0.7mm raises break strength to approximately 130kg—a significant performance gain with minimal thickness increase . This illustrates why thickness should be evaluated alongside break strength claims.

2.2 Thickness and Equipment Compatibility

Beyond strength implications, thickness directly affects strapping head compatibility. Automatic and semi-automatic strapping machines are designed to accommodate specific thickness ranges. Using strap that falls outside your equipment's tolerance can cause misfeeds, jams, and reduced machine uptime.

European packaging operations running high-speed automated lines should verify that their chosen PP strap thickness aligns with manufacturer recommendations. As one packaging equipment specialist notes, tighter dimensional control reduces misfeeds and increases production efficiency . Jushuo Packaging's lab data confirms that thickness consistency across batches—measured to ±0.02mm tolerance—significantly reduces chute feeding interruptions in automated packaging systems.

3. Core Size: The Equipment Compatibility Factor

3.1 Core Dimensions and Dispenser Fit

The core size—the inner diameter of the strap roll—is often overlooked but critically affects dispenser compatibility. Standard cores include 200mm, 300mm, and 400mm diameters, with variations in core width.

Using strap with an incorrect core size can cause:

• Roll wobble: Inadequate fit on the dispenser spindle

• Uneven tension: Fluctuating feed rates affecting seal quality

• Roll collapse: Damage to the strap in storage or transit

• Dispenser wear: Premature equipment component failure

3.2 Matching Core Size to Your Operation

For operations using manual strapping tools, standard core dimensions (typically 300mm inner diameter with 150mm core width) are generally sufficient. For automated systems, core specifications must match the machine's unwinding mechanism precisely.

The term "core" in strapping refers to the cylindrical center of the strap roll onto which the strap is wound. Equipment compatibility requires matching both the inner diameter and the core width to the dispenser spindle specifications. Jushuo Packaging offers customizable core dimensions for clients with unique equipment requirements, ensuring seamless integration into existing packaging lines.

4. Beyond the Basics: Additional Specifications

4.1 Surface Finish: Smooth vs. Embossed

PP strap is available in smooth and embossed surface finishes. Embossed strap features a textured surface that provides:

• Improved chute feeding: Reduced friction in automatic equipment

• Better tension holding: Enhanced grip during application

• Flexibility: Easier bending around edges and irregular shapes

Smooth strap, while less costly, may perform adequately for manual applications or when consistent, high-volume runs justify the lower price point.

4.2 Break Strength: The Ultimate Performance Metric

While width and thickness are specifications, break strength (measured in kilograms) is the performance outcome buyers should prioritize. Quality PP strap manufacturers provide documented break strength data verified through batch testing.

According to industrial strapping suppliers, polypropylene strapping is designed for light to medium-duty applications, with its characteristics including breaking strength, elasticity, and tensile strength being adequate for many applications . However, not all manufacturers maintain the same quality standards. Jushuo Packaging's quality assurance includes tensile testing on every production batch, with documented results available to clients upon request.

Summary

Selecting the right PP strap specification requires focusing on the dimensions that genuinely affect performance rather than getting lost in marketing claims. Width determines load distribution and application fit; thickness influences break strength and equipment compatibility; core size ensures dispenser functionality. Among these three, width is arguably the most critical first decision, followed by thickness based on load requirements, with core size being an equipment-specific must-match.

For European buyers, the practical takeaway is straightforward: match width to your load dimensions, thickness to your break strength requirements, and core size to your equipment specifications. Request documented test data from suppliers to verify performance claims, and always test samples in your actual operating conditions before committing to large orders.

Jushuo Packaging supports clients through every stage of the selection process, from specification consultation and sample provision to ongoing technical support. Our manufacturing capabilities and quality control systems ensure consistent performance across all specified dimensions.

If you need to evaluate which PP strap specification best suits your packaging operation or require assistance with sample testing and equipment compatibility verification, please send an email to sales@jushuopackaging.com, and our professional team will provide one-on-one support.

References

1. Industrial Packaging Alliance. “PP Strapping Specifications and Selection Guide.” PackagingIndustry.com, 2024.

2. British Standards Institution. “Strapping – Polypropylene Strapping – Specifications and Test Methods.” BS EN 13394:2001.

3. German Institute for Standardization. “Packaging – Strapping – Part 1: Polypropylene Strapping.” DIN EN 13394.

4. European Strapping Manufacturers Association. “Guidelines for Polypropylene Strapping Selection.” ESMA.org, 2023.

5. Jushuo Packaging Co., Ltd. “PP Strap Product Technical Data Sheet.” JushuoPackaging.com, 2025. https://www.jushuopackaging.com/
