Large Paper Element Automatic PP Strap

Core Value: Why Choose Large Paper Core PP Strapping?

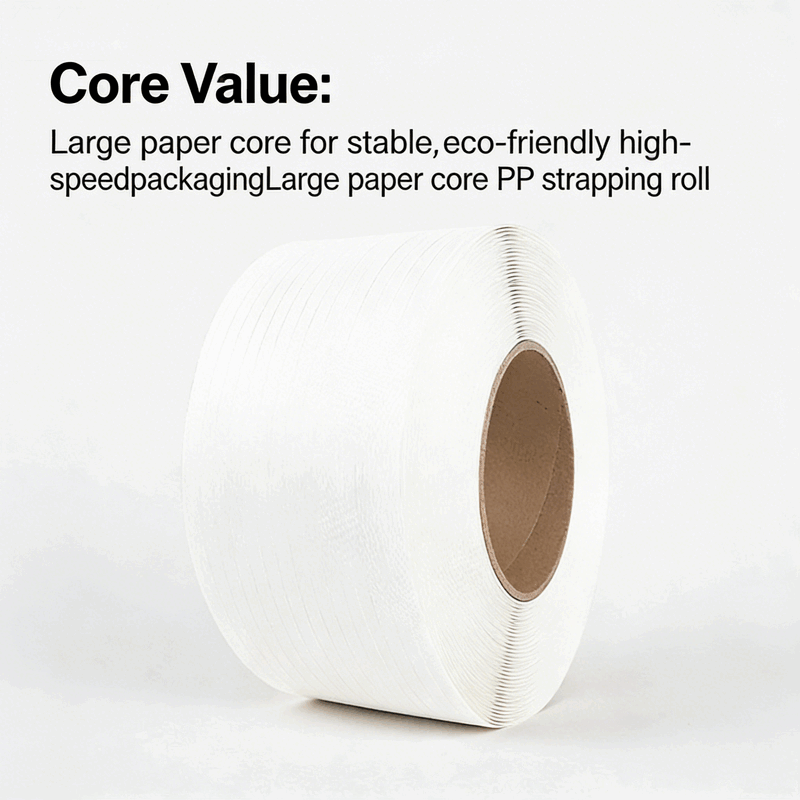

Large Paper Element Automatic PP Strapping is a PP strapping product engineered for high-speed automated packaging systems. Its defining characteristic is the use of a large paper core at the center of the coil, replacing traditional plastic or small paper cores. This design enhances operational stability on automated equipment, improves changeover efficiency, and offers superior sustainability credentials.

Jushuo Large Paper Core Automatic PP Strapping delivers a durable, stable, and eco-conscious packaging solution for demanding, high-volume operations. Compatible with a wide range of automatic and semi-automatic strapping machines, it is ideal for continuous production lines, helping businesses boost packaging throughput while minimizing downtime and material waste.

The large paper core enables longer coil lengths, reduces splice points, and ensures smoother unwinding—all contributing to consistent, uninterrupted strapping performance. Furthermore, the fully recyclable paper core aligns with green packaging initiatives and circular economy principles, supporting corporate environmental goals.

Outstanding Performance: Engineered for Efficiency

✅ Large Core Design for Continuous Operation

The high-strength, large-diameter paper core allows for significantly longer strapping lengths, reducing the frequency of coil changes and supporting uninterrupted, high-volume production lines.

✅ Smooth Feeding for High-Speed Machinery

A specially treated surface, combined with the structural stability of the premium paper core, ensures smooth, jam-free travel through automated feeders at high speeds, protecting both the equipment and the product.

✅ Exceptional Strength and Reliable Sealing

Made from premium polypropylene with consistent gauge and width, it provides high tensile strength and reliable heat-seal joints for secure bundling across various materials and load shapes.

✅ Eco-Friendly and Fully Recyclable

Both the strapping and the paper core are recyclable, reducing industrial waste and carbon footprint. This makes it an ideal choice for companies committed to sustainable supply chain practices.

Technical Parameters

PRODUCT CODE	DESCRIPTION							PACKAGE
	SURFACE	COLOR	CORE SIZE	NOMINAL WIDTH	NOMINAL THICKNESS	NOMINAL BREAK	LENGTH
JS05035-P	EMBOSSED	C/W	200	5MM	0.35MM	45KG	7000M	WRAFT PAPER
JS05047-P	EMBOSSED	C/W	200	5MM	0.47MM	50MG	7000M	KRAFT PAPER
JS05050-P	EMBOSSED	C/W	200	5MM	0.50MM	55MG	6000M	KRAFT PAPER
JS05060-P	EMBOSSED	C/W	200	5MM	0.60MM	65KG	6000M	KRAFT PAPER
JS09036-PS	SMOOTH	C/Y	200	9MM	0.36MM	110KG	4800M	MRAFT PAPER
JS09050-P	EMBOSSED	W	200	9MM	0.50MM	110KG	4000M	KRAFT PAPER
JS09063-P	EMBOSSED	W/C/B	200	9MM	0.63MM	136KG	4000M	KRAFT PAPER
JS09063B-P	EMBOSSED	W/C/B	406	9MM	0.63MM	136KG	4000M	KRAFT PAPER
JS12050-P	EMBOSSED	C/W	200	12MM	0.50MM	110KG	3000M	KRAFT PAPER
JS12050B-P	EMBOSSED	C/W	406	12MM	0.50MM	110KG	3000M	KRAFT PAPER
JS12063-P	EMBOSSED	C/W	200	12MM	0.63MM	136KG	3000M	KRAFT PAPER
JS12063B-P	EMBOSSED	C/W	406	12MM	0.63MM	136NG	3000M	KRAFT PAPER
JS12063C-P	EMBOSSED	C/W	228	12MM	0.63MM	136KG	3000M	KRAFT PAPER
JS12070-P	EMBOSSED	C/W	200	12MM	0.70MM	160KG	2500M	KRAFT PAPER
JS12080-P	EMBOSSED	C/W	200	12MM	0.80MM	180KG	2000M	KRAFT PAPER
JS15060-P	EMBOSSED	C/W	200	15MM	0.60MM	170KG	2500M	KRAFT PAPER
JS15080-P	EMBOSSED	C/W	200	15MM	0.80MM	200KG	1880M	KRAFT PAPER
JS19080-P	EMBOSSED	C/W	200	19MM	0.80MM	230KG	1500M	KRAFT PAPER

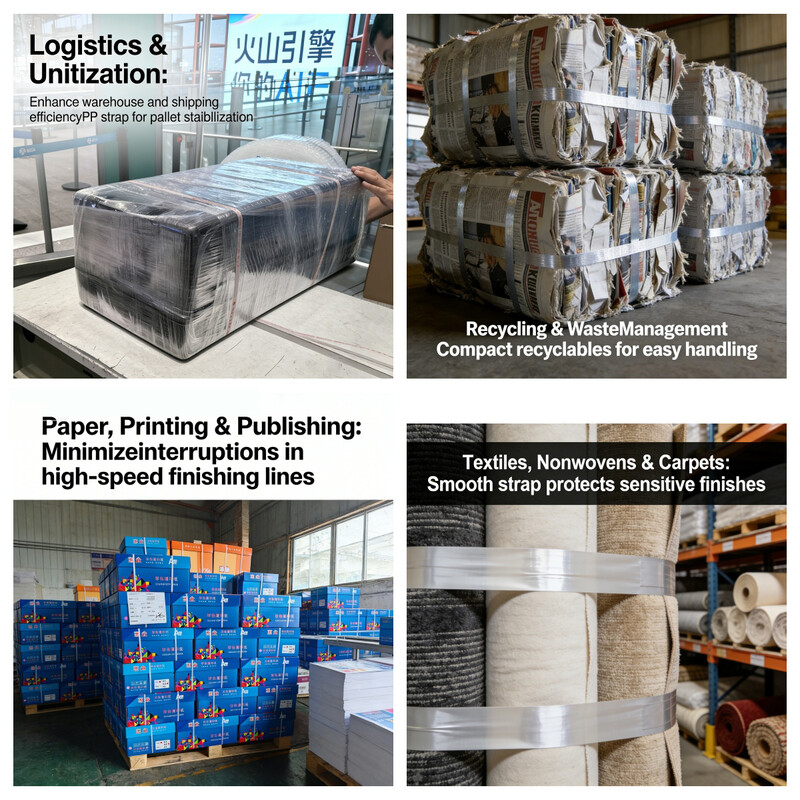

Wide Applicability: Meeting Diverse Industrial Needs

1. Paper, Printing & Publishing

Ideal for bundling paper reams, finished print products, and large paper rolls. The long coil length minimizes interruptions in high-speed finishing lines.

2. Textiles, Nonwovens & Carpets

Secures rolls of fabrics, nonwoven materials, and carpets effectively. The smooth strap surface protects sensitive material finishes.

3. Logistics & Unitization

Excellent for pallet stabilization, carton closing, and creating secure unit loads for transportation, enhancing warehouse and shipping efficiency.

4. Recycling & Waste Management

Efficiently compacts and bundles recyclables like cardboard, plastic film, and non-ferrous scrap, facilitating handling, storage, and transportation.
