How to Choose the Right Cotton Bale Strap Specification?

The Cotton Bale Packaging Challenge

Cotton baling is one of the most demanding packaging applications in agriculture. A typical cotton bale weighs approximately 200–220kg and must withstand compression forces, forklift handling, multiple stacking in warehouses, and weeks of ocean freight exposure. The wrong strapping can result in bale deformation, fiber contamination from rust, or complete package failure—each costing the producer significantly in product value and shipping claims.

At Jushuo Packaging, our production data and customer feedback show that specification mismatches are among the most common causes of strapping line inefficiencies reported by cotton ginners and exporters worldwide. Understanding how to select the right PET strap (polyester strap) for cotton bale applications is essential for packaging professionals in the agricultural sector.

1. Understanding Cotton Bale Strap Specifications

1.1 Break Force: The Most Critical Specification

Break force is the single most important specification for cotton bale strap. According to Joint Cotton Industry Bale Packaging Committee standards, polyester plastic strapping for gin standard and gin universal density bales must have an average break strength of not less than 2,400 pounds (approximately 1,089kg) .

For cotton bale applications, break forces need to be higher than 800kg to handle compression stresses and dynamic loading during transport . As a general rule, strapping should be rated at least 150% higher than expected working loads to accommodate shock loads and material degradation over time .

Jushuo Packaging's cotton bale strap is available with break forces ranging from 160kg to 1,360kg, with standard export cotton bale applications typically requiring the higher end of this range.

1.2 Width and Thickness Specifications

Width and thickness parameters affect both strength and equipment compatibility. Wider strapping better distributes load across bale sides, reducing the risk of cutting and edge damage .

Industry shorthand helps identify specifications quickly. For example, "190127" means 19.0mm width and 1.27mm thickness :

For cotton applications, the most common widths are 15–25mm with thicknesses from 0.6–1.25mm, depending on requirements .

1.3 Elongation Characteristics

Elongation characteristics determine how the strapping responds to load changes and environmental conditions. Low elongation PET strapping maintains consistent tension even when cotton bales settle and moisture content changes . Specifications typically aim for elongation values below 12% at break to ensure dimensional stability .

PET exhibits high elongation recovery, acting like a heavy-duty spring. While steel loses tension after settling, PET maintains constant bale compression, improving stackability and reducing damage risk .

1.4 Temperature and Environmental Resistance

Temperature resistance is important for cotton operations in warm climates or during summer shipping. High-quality PET strapping maintains performance across a wide temperature range without becoming brittle or softening excessively .

PET strapping offers stable performance at 120°C with a melting point of 260°C, making it suitable for storage or processing in varied environments .

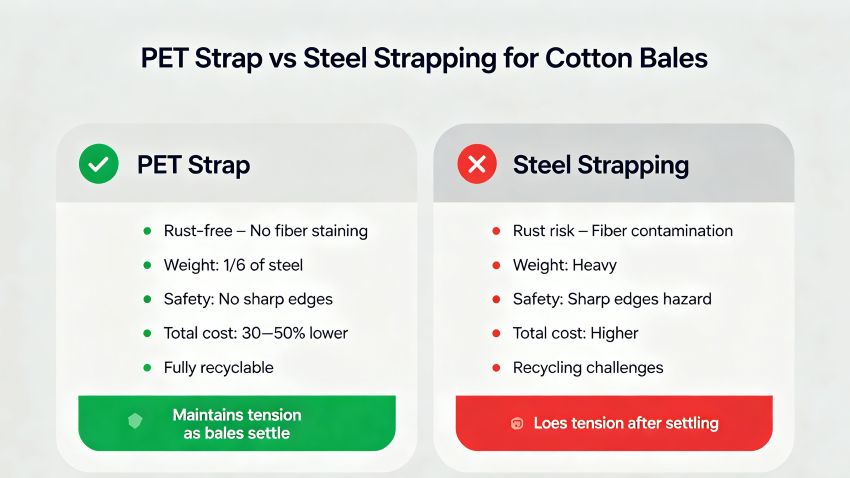

2. PET vs. Steel for Cotton Bale Applications

2.1 Performance Comparison

Modern PET strapping offers significant advantages over steel alternatives:

PET strapping eliminates rust-related product damage, reduces handling complexity, improves worker safety, and offers better recyclability compared to steel .

2.2 Cost Analysis

Despite higher initial unit costs, PET often provides better total cost of ownership . Total cost of ownership is reduced by 30–50% compared to steel, thanks to lower weight, reduced waste, and labor savings .

PET strapping is reusable 2–3 times, offering significant cost savings over steel over multiple applications .

3. Equipment Compatibility Considerations

3.1 Automatic Strapping Systems

Modern strapping processes use extensive automation to maintain productivity and achieve consistent results . Automatic strapping systems require precise dimensional tolerances and consistent material properties to prevent jams or misfeeds .

PET cotton bale strapping is designed for high-frequency, high-efficiency mechanical packaging and is compatible with battery-powered friction weld tools and automated tensioning equipment .

3.2 Semi-Automatic and Manual Operations

For operations using semi-automatic or manual systems, compatibility with tensioning tools is essential . PET strapping requires tools designed to work with the material's properties without causing damage.

3.3 Sealing Systems

Sealing clip systems must match the strapping material properties to create secure joints. PET typically uses metal clips or heat sealing to create bonds stronger than the base material .

4. Application-Specific Selection

4.1 Standard Density vs. Universal Density Bales

Different bale densities require different strapping specifications:

4.2 Ginning Operations

Ginning is where cotton bales are first formed and strapped. Modern gins use automated strapping systems that apply PET strap when bales reach specified compression levels. The strapping must be placed in recesses or channels on the flat sides of the bale to protect tying materials from handling forces .

Jushuo Packaging's cotton bale strap is available with customizable break forces, widths, and thicknesses to match specific gin equipment and bale density requirements.

4.3 Warehousing and Export Operations

Warehouse environments stack cotton bales multiple layers high. Bottom bales experience significant compression loads from upper layers, requiring exceptional strap strength and durability . PET strap's stable elongation properties ensure that straps do not stretch excessively under load, maintaining tension over extended storage periods.

For export shipments, break forces between 900kg and 1,360kg are typically required to comply with international shipping regulations .

5. Supplier Evaluation and Procurement

5.1 Manufacturing Capabilities

When evaluating cotton bale strap suppliers, look for:

• In-house manufacturing with advanced production technology

• 15,000㎡+ production facilities

• Annual production capacity exceeding 20,000 tons

• Quality control systems achieving 99%+ pass rates

Jushuo Packaging exemplifies these capabilities with 4 PET production lines, 20,000 tons annual capacity, and rigorous quality assurance systems.

5.2 Quality Verification

Quality verification before full production prevents operational problems and financial losses from premature failures . Tensile strength testing is the most fundamental quality assessment method. Samples should consistently meet or exceed stated break force specifications .

Key quality parameters to verify:

• Break force testing (batch testing every 2 hours)

• Elongation measurement (≤12% at break for stability)

• Dimensional accuracy (width and thickness tolerances)

• Surface quality (smooth edges prevent fiber cutting)

5.3 Customization Options

Modern cotton bale packaging demands increasingly sophisticated customization options:

• Color coding: Identify different cotton grades, origins, or quality levels

• Custom printing: Brand identification and traceability

• Width and thickness: Optimization for specific applications

• Logo integration: Anti-counterfeiting benefits and marketing differentiation

Jushuo Packaging offers extensive customization options including width specifications from 9–25mm, thickness options from 0.4–1.25mm, color coding, and printed character applications .

Summary

Selecting the right cotton bale strap specification requires careful attention to break force, width, thickness, elongation characteristics, and environmental resistance. For standard cotton bale applications, break forces above 800kg are recommended, with widths of 15–25mm and thicknesses of 0.6–1.25mm being most common. Universal density and export bales typically require higher break forces up to 1,360kg.

PET strapping offers significant advantages over steel alternatives—eliminating rust contamination, reducing weight, improving worker safety, and providing better tension retention as bales settle during storage and transit. Total cost of ownership is typically 30–50% lower with PET compared to steel.

Procurement professionals should evaluate suppliers based on manufacturing capabilities, quality assurance systems, and customization flexibility. Verifying quality through tensile testing, dimensional verification, and sample testing before full production ensures consistent performance.

Jushuo Packaging offers comprehensive cotton bale strap solutions with customizable specifications, documented quality assurance, and supply chain reliability. Our manufacturing capabilities—4 PET production lines with 20,000 tons annual capacity, SSP viscosity control, and 99%+ pass rates—ensure consistent performance across all specified dimensions. We support clients through every stage of the selection and application process.

If you need assistance selecting the right cotton bale strap specification for your operation, please send an email to sales@jushuopackaging.com, and our professional team will provide one-on-one support.

References

1. European Committee for Standardization. “EN 13394:2001 – Packaging – Strapping – Specifications for Polyester Strapping.” CEN.eu, 2001.

2. American Society for Testing and Materials. “ASTM D3950 – Standard Specification for Strapping, Flat Steel and Seals.” ASTM International, 2021.

3. Joint Cotton Industry Bale Packaging Committee. “Bale Packaging Specifications – Polyester Plastic Strapping.” cotton.org, 2024.

4. M. L. Smith and R. J. Thompson. “Comparative Analysis of Polyester and Steel Strapping Materials for Agricultural Bale Packaging.” Journal of Applied Packaging Research, vol. 15, no. 2, pp. 67-84, 2023.

5. International Organization for Standardization. “ISO 9001:2015 – Quality Management Systems – Requirements.” ISO.org, 2015.
