Custom Width and Thickness Options for Polypropylene PP Strapping

The Customization Advantage

Standard PP strapping serves many applications. But when operations have specific load requirements, carton dimensions, or equipment constraints, standard options are often not enough. Custom PP strapping (polypropylene strapping) allows buyers to specify exact width and thickness dimensions that match their application, improving packaging performance while avoiding unnecessary material costs.

Width and thickness dimensions directly affect strap performance in three critical areas: break strength and load capacity, machine compatibility and feed reliability, and carton surface pressure and damage prevention. At Jushuo Packaging, our production data shows that specification optimization reduces both material waste and load failure rates compared to standard options.

1. Understanding PP Strapping Width Options

1.1 Standard and Custom Width Range

PP strapping is manufactured in widths ranging from 5mm to 19mm. Custom widths within this range accommodate specific equipment requirements and load characteristics. According to equipment specifications, PP strap width determines load distribution across carton and pallet surfaces, with standard widths optimized for machine compatibility.

Standard widths include 5mm, 9mm, 12mm, 15.5mm, and 19mm. Custom widths between these values may be available from manufacturers with advanced extrusion capabilities. According to manufacturing sources, width dimensions are determined during the extrusion process and can be adjusted by changing the die profile.

1.2 Width Selection by Application

According to Strapping & Tape, 9mm polypropylene strapping is one of the most popular sizes for small cartons and bundles, while 12mm and 15.5mm are widely used for palletized loads. As a general rule, wider straps provide greater break strength but may not be necessary for lightweight loads.

1.3 Equipment Compatibility by Width

Equipment compatibility depends on chute opening dimensions. According to machine manufacturer specifications:

• Arch-type machines: 5–15.5mm width acceptance

• Heavy-duty pallet strappers: 12–19mm width acceptance

• Table-top automatic machines: 5–12mm width acceptance

• Semi-automatic machines: 5–19mm width acceptance depending on model

Jushuo Packaging's technical team recommends checking chute width tolerance with your equipment manufacturer before selecting custom width dimensions.

2. Understanding PP Strapping Thickness Options

2.1 Standard and Custom Thickness Range

PP strapping thickness ranges from 0.35mm to 1.2mm, with break force directly correlated to thickness. According to manufacturing specifications, thickness is determined by stretching ratio and extrusion parameters, with typical tolerance of ±0.02mm.

2.2 Thickness Selection by Application

Thickness selection influences three primary factors: break strength and load capacity, seal performance and joint strength, and machine feed reliability and tension consistency. According to Signode, a thicker strap may provide more strength but can also require more tension force to stretch and may require modifications to equipment.

2.3 Equipment Compatibility by Thickness

Sealing capacity is the primary thickness limitation for automatic equipment. According to equipment manufacturers:

• Heat seal machines: Typically accept 0.35–0.65mm thickness

• Friction weld machines: Accept 0.45–0.80mm thickness

• Pallet strappers: Can accept 0.60–1.20mm thickness

• Semi-automatic machines: Typically accept 0.45–0.85mm thickness

3. Customization Process

3.1 Specifying Your Requirements

Ordering custom PP strapping requires precise specification documentation. According to strapping industry standards, complete specifications should include:

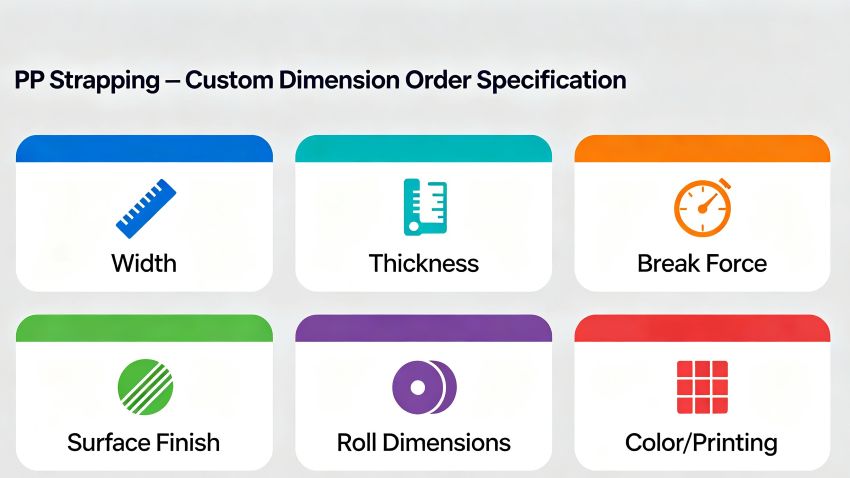

Required Information for Custom Orders:

Industry technical specifications note that tolerances must be specified to ensure consistent feeding in automatic equipment.

3.2 Sample Testing Protocol

Once custom specifications are defined, sample testing confirms compatibility. According to quality assurance standards:

1. Feed test: Confirm smooth feeding through existing equipment

2. Tension test: Verify consistent tension application

3. Seal test: Verify seal strength meets requirements

4. Break test: Confirm break force meets application requirements

Jushuo Packaging provides samples for in-house testing before production commitment.

4. Advantages of Customization

4.1 Cost Optimization Through Specification Matching

Customization prevents over-specification. According to packaging industry analysis, selecting the correct width and thickness can prevent over-specification, reducing material costs without compromising load safety. Avoiding unnecessarily heavy strap reduces packaging cost while maintaining adequate load security.

4.2 Equipment Compatibility Assurance

Custom dimensions ensure compatibility with existing equipment. According to machine manufacturers, consistent, precise dimensions lead to predictable performance and reduced downtime from jams and misfeeds.

4.3 Brand and Tracking Opportunities

Custom color and printing options support brand visibility and tracking. As one packaging source notes, custom printing allows brand identification, tracking information, and other details to be printed directly on the strap, supporting product tracking and counterfeit protection.

Jushuo Packaging offers custom color matching, logo printing, and other visual customization options for brand reinforcement.

5. Selecting a Custom PP Strapping Supplier

5.1 Manufacturing Capabilities

Custom dimensions require precise manufacturing capabilities. When evaluating suppliers, consider:

• Extrusion technology and dimensional control systems

• Width and thickness tolerance capabilities

• Production line flexibility for custom orders

• Minimum order quantity requirements

Jushuo Packaging operates 5 PP production lines with 20,000 tons annual capacity, SSP viscosity control from 0.60 to 0.95 dl/g, and 99%+ pass rates—ensuring custom dimensions meet specifications.

5.2 Quality Assurance and Batch Consistency

Batch consistency is critical for custom specifications. According to quality standards, every batch should include dimensional verification, tensile strength testing, and documentation for traceability.

Summary

Custom PP strapping width and thickness options allow packaging operations to optimize performance for specific applications. Widths from 5mm to 19mm determine load distribution, equipment compatibility, and break strength. Thicknesses from 0.35mm to 1.2mm influence seal performance, machine feeding, and load security.

The key to successful customization is precise specification documentation, sample testing, and batch consistency verification. Working with a manufacturer capable of tight tolerance control ensures custom dimensions deliver expected performance.

Jushuo Packaging offers comprehensive custom PP strapping solutions with customizable widths, thicknesses, and surface finishes. Our manufacturing capabilities—5 PP production lines with 20,000 tons annual capacity—ensure consistent performance across all specified dimensions. We support clients through the customization process, from specification consultation to sample testing and ongoing technical assistance.

If you need assistance specifying custom PP strapping dimensions for your operation, please send an email to sales@jushuopackaging.com, and our professional team will provide one-on-one support.

References

1. Signode Industrial Group. “Polypropylene Strapping – Product Specifications.” Signode.com, 2025.

2. Strapping & Tape. “PP Strapping – Dimensional and Technical Specifications.” strappingandtape.com, 2026.

3. EAM-Mosca. “Industry Standard Guide for Strapping Width and Thickness Tolerance.” EAM-Mosca.com, 2026.

4. ASTM International. “ASTM D3950 – Standard Specification for Strapping, Flat Steel and Seals.” ASTM.org, 2021.
