The Science of Molecular Orientation: Why Stretching Makes PP Strap Stronger

The Hidden Science Behind PP Strap Strength

When you pull a PP strap (polypropylene strap) to secure a pallet, you are relying on a manufacturing process that most people never think about: molecular orientation. Without this process, polypropylene strapping would break under loads that it now handles routinely. The difference between a weak strap and a strong one lies not in the material itself, but in how that material is structured at the molecular level.

Polypropylene, in its raw extruded form, has randomly arranged polymer chains. This random arrangement limits tensile strength and makes the material prone to stretching. During manufacturing, the strap is stretched—drawn—under precisely controlled conditions. This stretching straightens the polymer chains and aligns them along the strap's length, creating a structure that resists breaking. The process is called cold drawing, and it is the foundation of PP strap performance.

At Jushuo Packaging, our production data shows that molecular orientation is the single most important factor determining PP strap tensile strength. This article explains the science behind cold drawing, how it works at the molecular level, and why it matters for buyers selecting PP strapping for industrial packaging.

1. What Is Molecular Orientation?

1.1 The Structure of Polypropylene

Polypropylene is a polymer made from repeating propylene monomer units. In its raw state after extrusion, these polymer chains are randomly entangled—like a bowl of cooked spaghetti. This random arrangement limits how much force the material can withstand before breaking.

According to polymer science principles, randomly oriented chains slide past each other under stress, causing the material to stretch and eventually fail. To increase strength, the chains must be aligned.

1.2 How Orientation Changes the Material

Molecular orientation is the process of aligning polymer chains in a specific direction. When polypropylene is stretched under controlled conditions, the chains straighten and align along the direction of stretch. This alignment creates several important changes:

According to material science data, oriented polypropylene can be several times stronger than non-oriented material of the same thickness.

1.3 Longitudinal vs. Biaxial Orientation

PP strapping can be oriented in one direction (longitudinal) or two directions (biaxial). According to patent literature on strapping manufacturing, biaxial orientation—aligning molecules in both length and width directions—improves resistance to longitudinal splitting. Most high-quality PP strapping uses a combination of longitudinal drawing and controlled transverse orientation to achieve optimal performance.

2. The Cold Drawing Process

2.1 Extrusion: Forming the Base Strap

The process begins with extrusion. Polypropylene resin is melted and forced through a die to form a continuous flat band. At this stage, the polymer chains are randomly arranged and the strap has low tensile strength.

2.2 Stretching: Aligning the Molecules

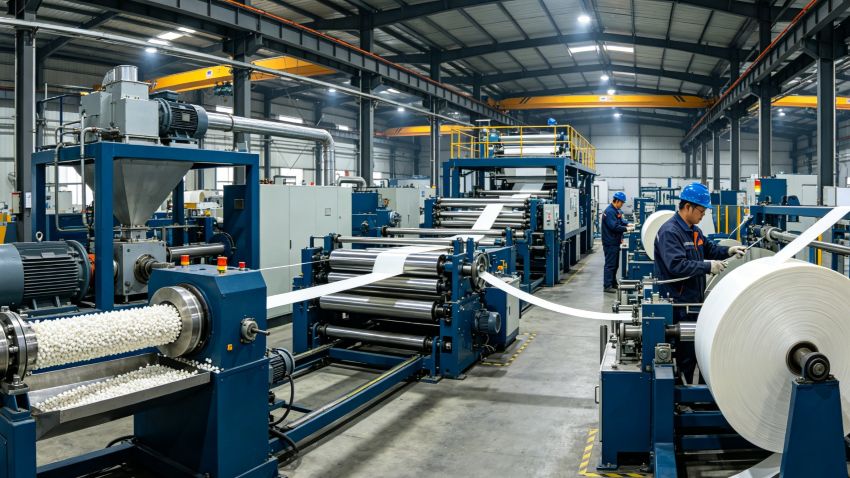

After cooling, the extruded band passes through a series of rollers that stretch it under controlled tension and temperature. This stretching—cold drawing—pulls the polymer chains into alignment. According to manufacturing specifications, draw ratios typically range from 4:1 to 9:1, meaning the strap is stretched to 4–9 times its original length.

2.3 Heat Setting: Locking In the Structure

After stretching, the strap is heat-set to stabilize the oriented structure. According to industry analysis, heat setting relaxes internal stresses and ensures the strap maintains its properties over time.

At Jushuo Packaging, our production lines use controlled heat-setting parameters to ensure consistent molecular orientation across every batch.

3. How Molecular Orientation Affects Performance

3.1 Tensile Strength

The most direct effect of molecular orientation is increased tensile strength. According to industry testing, oriented PP strapping achieves break forces of 45–230kg depending on width and thickness. Without orientation, the same material would achieve a fraction of this strength.

3.2 Elongation and Tension Retention

Molecular orientation reduces elongation. Lower elongation means the strap stretches less under load, maintaining tension as packages settle. According to packaging analysis, this property is critical for load security during transit.

3.3 Split Resistance

Biaxial orientation improves split resistance. According to patent data, strapping with molecular orientation in both directions resists longitudinal splitting better than strap with only longitudinal orientation.

4. Manufacturing Variables That Affect Orientation

4.1 Draw Ratio

Draw ratio is the primary variable controlling molecular orientation. Higher draw ratios produce higher strength but may reduce flexibility. Manufacturers balance these factors to produce strapping suited to different applications.

4.2 Temperature Control

Stretching temperature affects how well the polymer chains align. According to polymer processing data, stretching within the optimal temperature range produces uniform orientation and consistent properties.

4.3 Cooling Rate

Cooling rate after stretching affects the final structure. Rapid cooling may lock in stresses; controlled cooling produces a more stable oriented structure.

At Jushuo Packaging, our process control systems maintain consistent temperature, draw ratio, and cooling parameters to ensure uniform molecular orientation across production runs.

5. Why This Matters for Buyers

5.1 Strength Without Excess Material

Molecular orientation allows manufacturers to produce high-strength strapping with less material. According to industry analysis, oriented PP strapping delivers higher strength per unit weight than non-oriented alternatives. This translates to cost savings and reduced packaging weight.

5.2 Consistent Performance

Understanding molecular orientation helps buyers evaluate supplier quality. Suppliers with advanced orientation technology produce more consistent strapping—batch after batch. Inconsistent orientation shows up as variable break force and elongation.

5.3 Application Matching

Different applications require different balances of strength, elongation, and split resistance. Understanding orientation helps buyers select the right specification for their load requirements.

Summary

Molecular orientation is the science behind PP strap strength. During manufacturing, extruded polypropylene is stretched under controlled conditions, aligning polymer chains along the strap's length. This alignment—cold drawing—dramatically increases tensile strength, reduces elongation, and improves split resistance. Without molecular orientation, PP strapping would be too weak for industrial packaging applications.

The key variables affecting orientation are draw ratio, stretching temperature, and cooling rate. Manufacturers that control these variables precisely produce stronger, more consistent strapping. For buyers, understanding molecular orientation provides insight into why PP strap performs the way it does—and how to select the right specification for their application.
