PET Strap Core Dimensions: Compatibility with Automatic Strapping Heads

The Specification Buyers Often Miss

When buyers specify PET strap (polyester strap) for an automatic strapping line, they typically focus on the specifications that appear on the data sheet: width, thickness, and break force. Core dimensions—the inner diameter of the strap roll and the width of the core itself—receive far less attention. Yet core dimensions are a frequent cause of feeding problems in automatic strapping heads.

A strap that meets every mechanical specification will still misfeed, wobble, or jam if its core does not fit the machine's dispenser spindle. In automatic strapping operations, these problems translate directly to downtime, wasted material, and reduced throughput. Understanding core dimension requirements helps buyers select PET strap that feeds reliably from the first meter to the last.

At Jushuo Packaging, our production data shows that core dimension mismatches account for a meaningful share of feeding issues reported by customers transitioning to new equipment or new strap suppliers. This guide explains the core dimensions that matter and how to verify compatibility.

1. Understanding PET Strap Core Dimensions

1.1 What Is a Core?

The core is the cylindrical center of a PET strap roll onto which the strap is wound. It serves two functions: it provides structural support for the wound strap during storage and transport, and it mounts onto the dispenser spindle of the strapping machine during operation.

According to equipment manufacturers, the core must fit the spindle precisely. An oversized core causes the roll to wobble; an undersized core causes the roll to slip or bind.

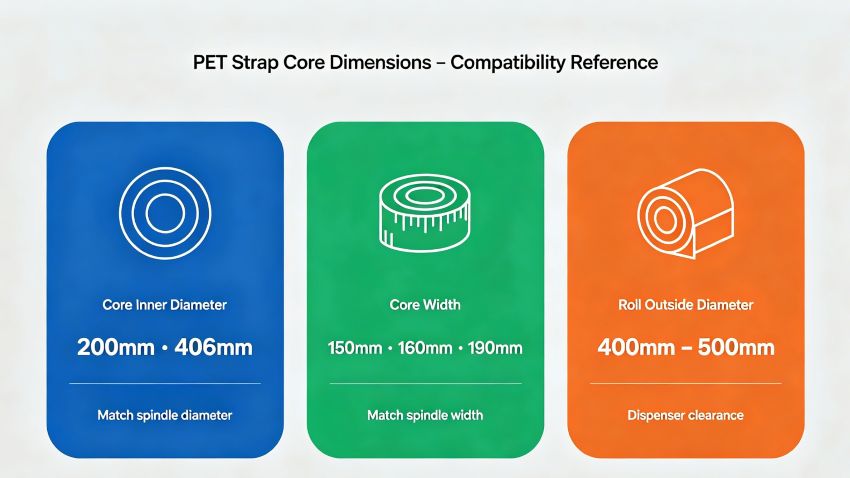

1.2 The Three Core Dimensions

Three core dimensions affect automatic strapping head compatibility:

All three must match the machine's specifications for reliable feeding.

1.3 Why Core Dimensions Matter in Automatic Equipment

According to equipment manufacturers, automatic strapping heads unwind strap under controlled tension. The dispenser spindle holds the roll in position while the feed mechanism pulls strap at a consistent rate.

If the core does not fit the spindle correctly:

• Roll wobble: Uneven unwinding, variable tension

• Slipping: Feed rate inconsistency, seal failures

• Binding: Increased drag, motor strain, feed interruption

• Roll collapse: Strap damage, material waste

2. Standard Core Dimensions for PET Strap

2.1 Common Core Inner Diameters

According to industry specifications, PET strap is manufactured with two primary core inner diameters:

Some equipment accepts only one core size, while others accommodate both through interchangeable spindles or adapters.

2.2 Core Width Specifications

Core width must match the spindle width of the strapping head. According to equipment specifications, common core widths for PET strap include:

A core that is too narrow for the spindle will not seat properly. A core that is too wide may not fit within the dispenser housing.

2.3 Roll Outside Diameter Considerations

Roll outside diameter affects how much strap can be loaded and how the roll fits within the machine's dispenser housing. According to industry data, typical PET strap roll outside diameters range from 400mm to 500mm.

Larger rolls reduce changeover frequency but require adequate clearance within the dispenser. At Jushuo Packaging, we offer customizable roll dimensions to match specific equipment requirements.

3. Core Dimension Tolerances

3.1 Why Tolerances Matter

Core dimensions are manufactured to tolerances, and variations beyond acceptable limits cause feeding problems. According to quality standards, core tolerances should be tight enough to ensure consistent spindle fit.

3.2 Core Material and Construction

Core material also affects performance. According to industry specifications, PET strap cores are typically made from:

• Cardboard: Standard, economical

• Plastic: Durable, moisture-resistant

• Composite: High-strength applications

Cardboard cores are common for standard applications. Plastic cores offer better moisture resistance for humid environments.

4. Verifying Core Compatibility Before Purchase

4.1 Check Equipment Specifications

The first step is confirming your strapping machine's core requirements. According to equipment manufacturers, the machine manual or specification sheet lists:

• Required core inner diameter

• Acceptable core width range

• Maximum roll outside diameter

• Spindle type and dimensions

4.2 Request Core Dimension Documentation

Before ordering PET strap, request documentation from the supplier confirming:

• Core inner diameter (with tolerance)

• Core width (with tolerance)

• Roll outside diameter

• Core material

Jushuo Packaging provides complete core dimension documentation with every quotation.

4.3 Sample Testing

According to quality best practices, sample testing verifies core compatibility before full production commitment. Test steps:

1. Mount the sample roll on the machine spindle

2. Verify proper fit (no wobble, no binding)

3. Run feed cycles and observe unwinding consistency

4. Check strap tension stability across the roll

4.4 Common Compatibility Issues and Solutions

5. Core Dimensions and Equipment Types

5.1 Carton Strapping Machines

According to equipment specifications, carton strapping machines typically use:

• Core ID: 200mm

• Core width: 150–160mm

• Roll OD: 400–450mm

These machines operate at high cycle rates and require consistent core dimensions for reliable feeding.

5.2 Pallet Strapping Machines

Pallet strapping machines typically use:

• Core ID: 200mm or 406mm

• Core width: 160–190mm

• Roll OD: 450–500mm

Larger rolls reduce changeover frequency in high-volume pallet operations.

5.3 Heavy-Duty Automatic Strappers

Heavy-duty systems may use:

• Core ID: 406mm

• Core width: 190mm

• Roll OD: 500mm+

These systems handle wider, thicker PET strap for heavy industrial loads.

Jushuo Packaging offers PET strap in multiple core configurations to match carton, pallet, and heavy-duty automatic strapping equipment.

Summary

Core dimensions are a critical but often overlooked specification for PET strap in automatic strapping operations. Core inner diameter, core width, and roll outside diameter must all match the strapping head dispenser for reliable feeding. Standard core inner diameters are 200mm and 406mm, with core widths from 150mm to 190mm and roll outside diameters from 400mm to 500mm.

The practical approach is straightforward: check your equipment specifications, request core dimension documentation from your supplier, and test samples before full production. Core dimension mismatches cause wobble, binding, and feed interruption—problems that are entirely preventable with proper specification.
