High-Viscosity vs. Standard PP Strapping: Which Performs Better Long-Term?

The Grade Question

When buyers specify PP strapping for packaging operations, they typically focus on width, thickness, and break force. But there is another specification that significantly affects long-term performance: the viscosity grade of the raw polypropylene resin. High-viscosity PP strapping and standard PP strapping may look identical on the surface, but they behave differently over time—especially under sustained load, in demanding environments, or during long-distance transit.

Viscosity, measured in deciliters per gram (dl/g), indicates the length of polymer molecular chains in the resin. Longer chains create stronger intermolecular bonds, resulting in higher tensile strength, better creep resistance, and improved performance retention. At Jushuo Packaging, our production data confirms that high-viscosity PP strapping delivers measurable advantages for applications requiring long-term load security. This article compares the two grades across molecular structure, mechanical properties, and real-world performance.

1. What Is Viscosity in PP Strapping?

1.1 Understanding Intrinsic Viscosity

Intrinsic viscosity (IV) measures a polymer's molecular weight and chain length. In polypropylene resin, higher IV indicates longer molecular chains. According to polymer science data, intrinsic viscosity is determined by measuring the flow time of a polymer solution through a capillary viscometer and calculating the relative viscosity.

For PP strapping applications, the relevant viscosity range is typically 0.60 to 0.95 dl/g, measured after solid-state polymerization (SSP). This range represents the difference between standard-grade and high-viscosity grades.

1.2 How Viscosity Affects Molecular Structure

According to material science principles, longer molecular chains create more entanglement points and stronger secondary bonds, which directly translate to improved mechanical properties.

1.3 How Viscosity Is Controlled in Manufacturing

High-viscosity PP strapping requires controlled polymerization and processing. According to manufacturing specifications, SSP technology increases molecular weight by extending polymer chains under controlled heat and vacuum conditions. At Jushuo Packaging, our SSP viscosity control maintains resin quality between 0.60 and 0.95 dl/g, ensuring consistent molecular properties across production batches.

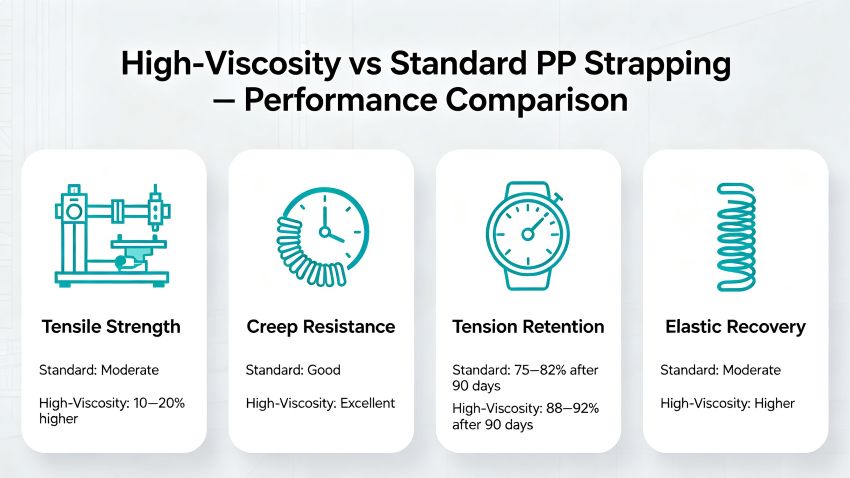

2. Mechanical Properties Compared

2.1 Tensile Strength

The most immediate difference between high-viscosity and standard PP strapping is tensile strength. According to material testing data, longer molecular chains create stronger intermolecular bonding, resulting in higher tensile strength at the same width and thickness.

2.2 Creep Resistance

Creep—the tendency of a material to deform slowly under sustained load—is a critical factor for long-term performance. According to polymer science data, longer molecular chains resist creep more effectively because they have more entanglement points to resist chain sliding.

This means high-viscosity PP strapping maintains tension better over time, especially in applications where loads are stored or transported for extended periods.

2.3 Elongation and Recovery

High-viscosity PP strapping also offers better elastic recovery. According to industry testing, the longer molecular chains provide more "spring-back" when tension is released, helping maintain load security as packages settle or shift.

2.4 Impact and Abrasion Resistance

According to packaging analysis, high-viscosity grades also demonstrate better impact resistance and abrasion resistance. The stronger molecular structure resists surface damage and crack propagation more effectively than standard grades.

3. Long-Term Performance Comparison

3.1 Tension Retention Over Time

The most significant long-term difference between the two grades is tension retention. According to Jushuo Packaging's lab data, high-viscosity PP strapping retains tension significantly better than standard grades over extended periods.

These figures demonstrate that high-viscosity strapping maintains load security for months longer than standard grades.

3.2 Performance in Demanding Environments

High-viscosity PP strapping also performs better in challenging conditions:

• High temperature: Longer chains resist thermal degradation better

• UV exposure: Slower degradation in outdoor applications

• Vibration: Better resistance to fatigue from sustained vibration

3.3 Creep Behavior Under Sustained Load

According to material testing data, high-viscosity PP strapping exhibits significantly lower creep rates under sustained load. This property is particularly valuable for:

• Long-distance shipments

• Warehouse storage exceeding 30 days

• Compressible loads that settle over time

• Applications with sustained tension requirements

4. Cost-Benefit Analysis

4.1 Material Cost Comparison

While high-viscosity PP strapping carries a higher upfront material cost, the total cost of ownership is often lower due to reduced replacement frequency and better performance retention.

4.2 When High-Viscosity Is Worth the Investment

According to industry analysis, high-viscosity PP strapping is the better choice for:

• Long-term storage: Warehouses holding products for weeks or months

• Long-distance shipments: Multi-day or multi-week transit times

• Heavy or critical loads: Applications where load failure is costly

• Demanding environments: High temperature, UV exposure, or vibration

4.3 When Standard PP Strapping Is Sufficient

Standard PP strapping remains a cost-effective choice for:

• Short-term storage: Products shipped within days

• Light-duty applications: Cartons and bundles under 100kg

• Indoor, controlled environments: No UV or temperature extremes

• High-volume, low-risk operations: Where occasional replacement is acceptable

5. Selection Guidelines

5.1 Application-Based Recommendations

5.2 Sample Testing Protocol

Before committing to full production, test samples in your actual operating conditions:

1. Tension retention test: Measure tension over time under representative load

2. Feed test: Verify compatibility with your strapping equipment

3. Seal test: Confirm seal strength and consistency

4. Break test: Confirm break force meets requirements

Jushuo Packaging provides samples in both grades for in-house testing.

Summary

The choice between high-viscosity and standard PP strapping depends on your application requirements. High-viscosity PP strapping, produced from resin with intrinsic viscosity between 0.80 and 0.95 dl/g, offers superior molecular chain length, resulting in 10–20% higher tensile strength, better creep resistance, and significantly better tension retention over time. Standard-grade PP strapping (0.60–0.75 dl/g) remains cost-effective for short-term, light-duty, and indoor applications.

The key decision factors are storage duration, transit distance, load weight, and environmental conditions. For applications requiring long-term load security—extended storage, long-distance shipments, heavy loads, or demanding environments—high-viscosity PP strapping delivers measurable performance advantages that justify the higher upfront cost.
