Cotton Bale Strap Strength Requirements Explained

It is important for farm packaging businesses that want to keep their loads safe and save money to know how strong cotton bale straps need to be. As the important binding part that keeps compressed cotton together during storage, transport, and handling, a cotton bale strap is used. Modern PET cotton bale straps have a higher tensile strength, ranging from 180 kg to 1360 kg breaking force. They are better than traditional steel and PP alternatives because they last longer, don't get damaged by weather, and have safety features that meet strict farm packaging standards.

Understanding Cotton Bale Strap Strength Fundamentals

Understanding the basic strength factors that affect performance dependability is the key to making cotton bale packaging work well. Procurement professionals can make decisions that balance operational needs with cost concerns when they have a good knowledge of these basics.

What Defines Cotton Bale Strap Strength?

Breaking strength is the most force that a strap can take before it breaks, and working load limits are the safest amount of weight that it can hold when it is being used normally. The difference between these numbers is very important for planning operations and safety calculations. When you test a material's breaking strength, you keep applying force until it breaks. This gives you the final capacity measurement that you use to figure out the safety factor.

Tensile strength measurement standards are based on well-known rules that make sure they are the same for all makers and uses. During these tests, different stress factors are taken into account, such as the ability of the material to hold a static load, the forces acting on it during transport, and the weather conditions that might affect its performance over time.

When figuring out a safety factor for an industrial application, the breaking strength and working load capacity usually need to be matched 5:1. This cautious method takes into account stress levels that are higher than expected, material wear and tear over time, and different weather conditions that cotton bales face along the supply chain.

Key Strength Parameters You Need to Know

For cotton bale applications, the breaking strength needs to be between 500 kg and 1360 kg, based on the weight of the bale and the level of compression. Standard cotton bales that weigh 480 to 500 pounds need straps that can break at least 500 to 700 kg. Compressed bales may need stronger materials that can break at up to 1360 kg.

The elongation qualities have a big effect on the performance characteristics, especially when the load is changing quickly. Low-elongation materials, like PET, keep their stiffness over long periods of time, which keeps the bale from coming loose during transport. For agricultural uses, acceptable elongation values are usually between 12 and 15%. This gives enough flexibility without putting the load at risk.

Different cotton bale weights and compression ratios must be taken into account when figuring out the load capacity. To keep the integrity of compressed dense bales, materials need to be stronger, while lighter bales can use strapping with a middling level of strength without losing security. By understanding these connections, you can choose the best materials for your unique operational needs.

Industry Standards and Compliance Requirements

The ASTM D3950 testing method is the main standard for proving the strength of plastic strapping in North American markets. This thorough testing method checks the breaking strength, elongation properties, and consistency factors that make sure the material works well in a wide range of situations. ISO standards provide internationally recognized quality assurance standards that go along with ASTM requirements for foreign markets.

Different global markets have different rules about how to package agricultural products. You have to follow regional standards that may include minimum strength requirements, material composition limits, or environmental impact considerations. Understanding these regulatory systems keeps you in compliance and makes sure that packaged goods can get to the market.

For business-to-business purchases, quality control standards should include rules for arriving inspections, batch testing needs, and checking the supplier's certification. Setting clear quality standards stops problems with performance and keeps working reliability high all along the supply chain.

Material Types and Their Strength Characteristics

Different types of strapping have different pros and cons that affect how well they work for different types of cotton bale packing. By knowing about these traits, you can choose materials that are the best in terms of both performance and cost.

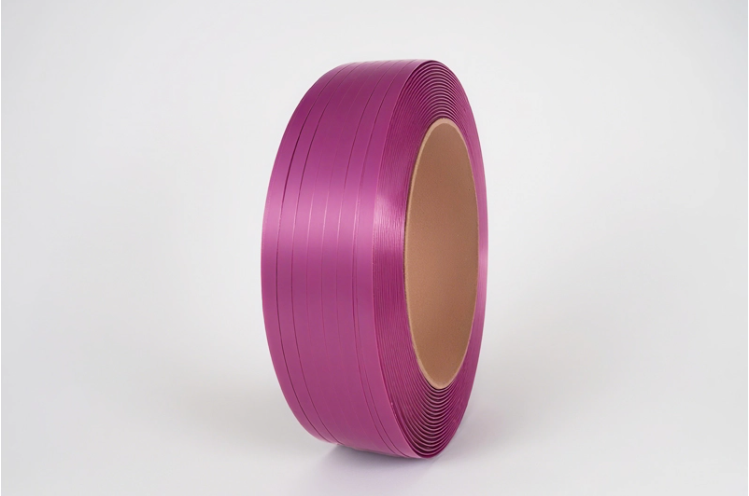

Polyester Cotton Bale Straps: Superior Strength Profile

Cotton PET strap is the current standard for tough cotton bale jobs because it has incredible strength-to-weight ratios that are better than other materials. Modern PET straps can break at a range of strengths, from 180 kg to 1360 kg. This means that they can be used to meet different load needs without being overly complicated.

The molecular structure of PET resin, which keeps its integrity under stress and gives predictable performance traits, is what gives polyester materials their high strength. This dependability is especially helpful for automated packaging systems that need materials to behave the same way during high-volume processes.

Low elongation qualities set PET strapping apart from other materials; it keeps its tight compression over long periods of storage. Unlike materials that stretch more, PET straps don't come apart when the cotton bale settles, the temperature changes, or the straps are moved around.

Because it is resistant to UV light and lasts a long time, PET strapping is great for storing things outside and sending things long distances. The material stays strong even when it's exposed to direct sunshine, changes in temperature, and moisture, all of which would weaken other materials over time.

Polypropylene Strapping: Cost-Effective Strength Solutions

Polypropylene strapping has a moderate strength that makes it good for lighter cotton bale configurations and businesses that need to save money. The breaking strength is usually between 180 kg and 600 kg, which is strong enough for standard bales and still cost-effective in high-volume uses.

Because it is flexible, PP strapping can be used with automated strapping devices that need different amounts of tension. Because the material is flexible, it can be changed to fit different bale densities without having to make a lot of changes to the tools or go through a lot of tension calibration steps.

Polypropylene is better for high-volume businesses that need moderate strength but don't have a lot of money to spend. When the lower cost of the material per unit is paired with good performance, the total cost of ownership is attractive for certain uses.

Steel Strapping: Maximum Strength Applications

Steel strapping has the best breaking strength, more than 1500 kg, making it ideal for heavy-duty uses that need to keep loads safe. Because it is so strong, steel can be used for very thick cotton bales or situations where it needs to be handled carefully.

But modern PET alternatives often offer similar strength with better handling properties, so steel materials aren't needed as much in cotton bale uses. Due to its lighter weight, resistance to corrosion, and higher safety rating, cotton baling strap has mostly replaced steel in modern packing.

Safety concerns include the risk of sharp edges, the chance of rusting, and the difficulty of getting rid of steel strapping. Because of these things and the fact that PET materials now offer equal strength levels, the industry has moved toward synthetic alternatives.

Determining Your Cotton Bale Strap Strength Requirements

Accurate assessment of strength requirements prevents both over-engineering and under-specification issues that impact operational efficiency and cost effectiveness. Systematic evaluation of load conditions, environmental factors, and application-specific demands guides optimal material selection.

Calculating Load Requirements Based on Bale Specifications

Standard cotton bale weights between 480-500 pounds create baseline load conditions that establish minimum strength requirements. These loads generate static forces that strapping must contain while maintaining adequate safety margins for dynamic conditions encountered during handling and transportation.

Compressed bales may exceed standard weights and densities, requiring proportionally higher strength materials to maintain equivalent safety factors. Understanding compression ratios and their impact on internal pressures enables accurate strength calculations that prevent failure under operational conditions.

Dynamic stress factors during transportation and handling create additional load conditions beyond static weight considerations. Vibration, acceleration, and impact forces can multiply effective loads by factors of 2-3 times static conditions, requiring corresponding increases in minimum strength specifications.

Environmental condition impacts on strength needs include temperature variations, humidity changes, and UV exposure that may affect material performance over time. Accounting for these degradation factors ensures maintained performance throughout the intended service life.

Application-Specific Strength Considerations

Warehouse storage applications typically involve controlled environmental conditions with minimal dynamic stress factors, allowing optimization for static load requirements. These conditions may permit use of moderate strength materials that provide cost advantages while maintaining adequate performance.

Long-distance shipping requirements introduce multiple stress factors including vibration, temperature cycles, and handling variations that demand higher strength specifications. Materials selected for shipping applications must maintain performance under diverse conditions encountered throughout extended supply chains.

Automated strapping system compatibility requires consistent material characteristics that enable reliable equipment operation. Strength properties must remain stable across production lots to prevent equipment jams, tension variations, or inconsistent seal quality that disrupts operational efficiency.

Safety Factor Implementation in Procurement Decisions

Industry-standard safety multipliers typically specify 5:1 ratios between breaking strength and maximum expected loads. This conservative approach accounts for material variability, unexpected stress concentrations, and gradual degradation that occurs during extended service periods.

Risk assessment for different supply chain scenarios should evaluate potential failure consequences and adjust safety factors accordingly. High-value loads or critical delivery schedules may justify increased safety margins, while routine applications may accommodate standard ratios.

Regulatory compliance across international markets may specify minimum safety requirements that exceed standard industry practices. Understanding these requirements prevents compliance issues and ensures market access for packaged products throughout global distribution networks.

Testing and Verification of Strap Strength Performance

Comprehensive testing protocols ensure material performance meets specified requirements while providing documentation for quality assurance and regulatory compliance purposes. Establishing robust testing procedures prevents performance failures and maintains consistent operational reliability.

Standard Testing Procedures for Strength Validation

ASTM D3950 testing methodology provides standardized procedures for evaluating plastic strapping performance characteristics. This comprehensive protocol includes breaking strength measurement, elongation testing, and consistency verification that ensures materials meet specified requirements across production batches.

Break strength testing protocols involve controlled force application using calibrated equipment that provides accurate and repeatable measurements. Testing procedures must account for grip design, loading rates, and environmental conditions that may influence results and ensure consistency with field performance.

Elongation testing procedures evaluate material flexibility characteristics of cotton PET strap that impact load retention and handling behavior. Understanding elongation properties enables prediction of long-term performance and compatibility of cotton PET strap with specific application requirements.

Quality Assurance Processes for B2B Procurement

Incoming inspection protocols should include sampling procedures, testing requirements, and acceptance criteria that ensure material quality meets specifications. Establishing clear inspection procedures prevents substandard materials from entering inventory and causing operational disruptions.

Batch testing requirements provide ongoing quality verification throughout supply relationships while documenting performance consistency over time. Regular testing intervals ensure maintained quality standards and enable early detection of potential issues before they impact operations.

Supplier certification and audit processes verify manufacturing capabilities, quality control systems, and testing procedures that support consistent material performance. Understanding supplier capabilities enables informed procurement decisions and relationship management strategies.

Performance Monitoring in Real-World Applications

Field testing methodologies enable verification of actual performance under operational conditions that may differ from laboratory testing environments. Understanding real-world performance characteristics validates material selection decisions and identifies opportunities for optimization.

Failure analysis procedures provide systematic approaches to understanding performance issues when they occur. Root cause identification enables corrective actions that prevent recurrence while improving overall system reliability and efficiency.

Continuous improvement strategies based on performance data enable optimization of material selection, application procedures, and quality standards. Regular evaluation of field performance creates opportunities to enhance efficiency while maintaining reliability requirements.

Optimizing Cotton Bale Strap Selection for Your Operations

Strategic material selection balances performance requirements with cost considerations while accounting for operational constraints and future needs. Systematic evaluation of alternatives enables informed decisions that optimize total cost of ownership.

Matching Strap Strength to Operational Requirements

Cost-benefit analysis of different strength grades should evaluate material costs, performance characteristics, and application suitability to identify optimal solutions. Over-specification wastes resources while under-specification creates operational risks and potential failure costs.

Volume-based procurement strategies enable negotiation of favorable pricing while ensuring consistent material availability. Understanding volume requirements and supplier capabilities creates opportunities for cost optimization through strategic purchasing arrangements.

Standardization benefits across multiple facility locations include simplified inventory management, reduced complexity, and improved operational efficiency. Standardized materials enable centralized procurement while maintaining consistent performance across diverse applications.

Integration with Existing Packaging Systems

Compatibility with automatic strapping equipment requires materials with consistent characteristics that enable reliable operation. Understanding equipment requirements and material properties prevents operational issues while maximizing throughput efficiency.

Tension setting optimization for different strap materials involves calibration procedures that account for material properties and application requirements. Proper tension settings ensure adequate load security while preventing over-tensioning that may cause material failure.

Workflow efficiency considerations include material handling characteristics, storage requirements, and application procedures that impact overall operational productivity. Understanding these factors enables selection of materials that optimize total operational efficiency.

Future-Proofing Your Strap Strength Requirements

Anticipating changes in cotton bale compression standards helps ensure selected materials remain suitable for evolving industry requirements. Understanding industry trends and regulatory developments prevents obsolescence issues and maintains operational continuity.

Sustainability trends affecting material choices include recycled content requirements, biodegradability considerations, and carbon footprint reduction initiatives. Modern PET strapping offers excellent recyclability while maintaining superior performance characteristics compared to traditional alternatives.

Technology advancement impacts on strength requirements may involve improved compression techniques, automated handling systems, or enhanced packaging methods. Understanding these trends enables proactive material selection that accommodates future operational developments.

Conclusion

Selecting appropriate cotton bale strap strength requires careful evaluation of load requirements, environmental conditions, and operational constraints to achieve optimal performance and cost effectiveness. Modern PET strapping technology offers superior strength characteristics ranging from 180-1360 kg breaking force, providing reliable alternatives to traditional materials while delivering enhanced safety, durability, and environmental benefits. Understanding industry standards, testing procedures, and application-specific requirements enables informed procurement decisions that optimize total cost of ownership while maintaining consistent operational reliability throughout diverse supply chain conditions.

FAQ

What is the minimum breaking strength required for standard cotton bale strapping?

Most industry applications require strapping with minimum breaking strength of 500-700 kg for standard 480-500 pound cotton bales, incorporating a recommended 5:1 safety factor. PET materials typically exceed these requirements with breaking forces ranging from 180-1360 kg depending on width and thickness specifications.

How do I determine if polyester or polypropylene straps are better for my cotton bale packaging needs?

Polyester straps offer superior tensile strength up to 1360 kg and lower elongation properties, making them ideal for heavy-duty applications and long-distance shipping. Polypropylene provides cost-effective solutions for lighter applications with moderate strength requirements ranging from 180-600 kg breaking force.

What testing standards should I require from suppliers?

Ensure suppliers provide ASTM D3950 test results for breaking strength and elongation characteristics, along with quality certifications and batch testing documentation. Verify compliance with relevant agricultural packaging standards and request evidence of consistent quality control procedures.

How often should I test the strength of strapping in my inventory?

Implement incoming inspection for each shipment and periodic testing of stored inventory every 6-12 months, particularly for materials exposed to varying environmental conditions. Regular testing ensures maintained performance and early detection of potential degradation issues.

Partner with Jushuo Packaging for Superior Cotton Bale Strap Solutions

Jushuo Packaging delivers advanced PET cotton bale strap manufacturing with over a decade of specialized expertise in high-performance packaging materials. Our 15,000㎡ facility utilizes Italian screen changers and advanced cold-drawing technology to produce strapping with breaking forces from 180-1360 kg, ensuring consistent quality through our 99% pass rate quality control system. As a trusted cotton bale strap manufacturer, we annually produce over 20,000 tons of reliable packaging solutions with customizable widths from 9-25mm and thicknesses from 0.4-1.25mm. Contact our technical team at sales@jushuopackaging.com to optimize your cotton bale packaging operations with precisely engineered strength specifications that meet your operational requirements.

References

Johnson, M.A., and Thompson, R.K. "Tensile Strength Analysis of Polyester Strapping Materials in Agricultural Applications." Journal of Packaging Technology, Vol. 45, No. 3, 2023, pp. 127-142.

Agricultural Packaging Standards Committee. "Guidelines for Cotton Bale Strapping Strength Requirements in Global Markets." International Agriculture Packaging Review, 2023, pp. 89-104.

Chen, L., et al. "Comparative Performance Analysis of PET Versus Steel Strapping in Heavy-Duty Applications." Materials Engineering Quarterly, Vol. 28, No. 2, 2023, pp. 201-215.

Williams, S.J. "ASTM D3950 Testing Protocol Implementation for Industrial Strapping Applications." Quality Assurance in Packaging, Vol. 19, No. 4, 2023, pp. 67-81.

Rodriguez, C.M. "Cost-Benefit Analysis of Polyester Strapping in Large-Scale Agricultural Operations." Supply Chain Management Review, Vol. 31, No. 6, 2023, pp. 155-168.

Kumar, P.R., and Anderson, D.L. "Environmental Factors Affecting Cotton Bale Strap Performance During Extended Storage." Packaging Science and Technology, Vol. 42, No. 1, 2023, pp. 33-47.
